Electric Tug Essentials

Q: "Do I need a license to operate an electric tug?"

"No, you do not need a licence to use an electric tug. This is one of the many reasons industrial manufacturers are increasingly opting for electric tugs to create fork-fee environments. Unlike forklift trucks, electric tow tugs don’t lift loads, so they do not fall under LOLER regulations (Lifting Operations ad Lifting Equipment Regulations, 1998). With an electric tug, you no longer need to wait for the availability of a licensed forklift truck driver to move a load. "

Q: "How long does the battery last?"

"Like any battery, the battery life of an electric tug or electric tow is determined by usage, specification, and environmental factors. Battery life can be influenced by variables such as: Load weight and route Run speed Battery specification/size Environmental conditions such as temperature We provide a runtime figure on each of our product pages. "

Q: "Will they work on slopes?"

"Yes, all MasterMover machines will work on slopes. The maximum angle our tugs are capable of clearing, on average, is 8°. It is important to remember that for every degree of slope involved, the maximum load capacity of the machine is reduced, just as pushing a car on the level requires less force than on a slope. Therefore, if the weight of the load is already close to the maximum capacity of the machine a more powerful tug may be needed to move the load on a slope. "

Q: "Can they work outside?"

"Yes, all our electric tow tugs are suitable for both indoor and outdoor use. Our AllTerrain tow tug range is the ideal solution for the most challenging of environments."

Q: "What if I need a custom solution?"

"For applications where a standard solution isn’t the right fit, we have a dedicated engineering team on hand to create custom solutions. With 25 years of industry experience in providing customised solutions, you’re in safe hands with MasterMover. "

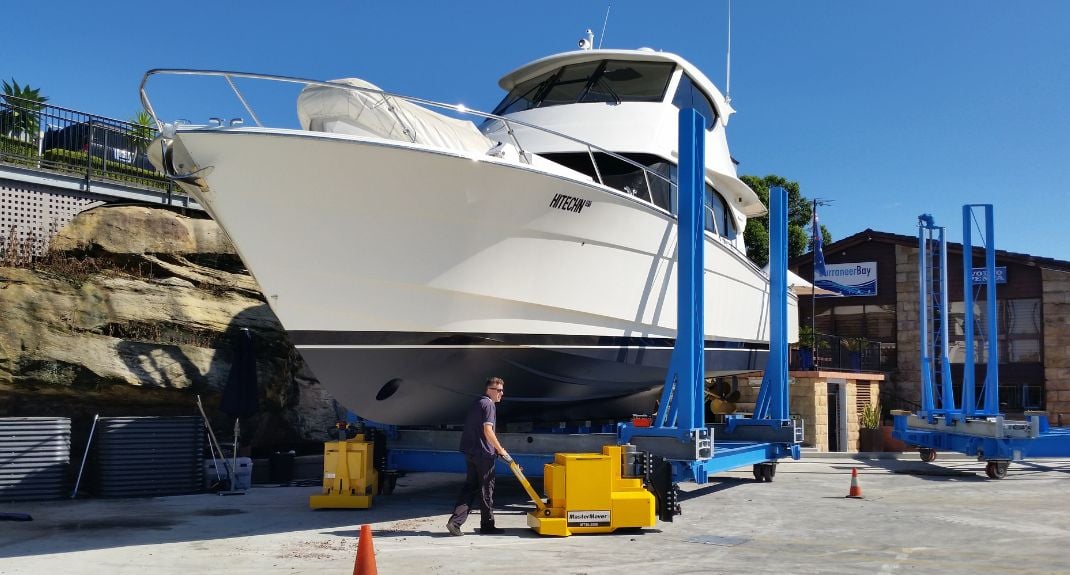

MasterTug moving a yacht in a manufacturing yard

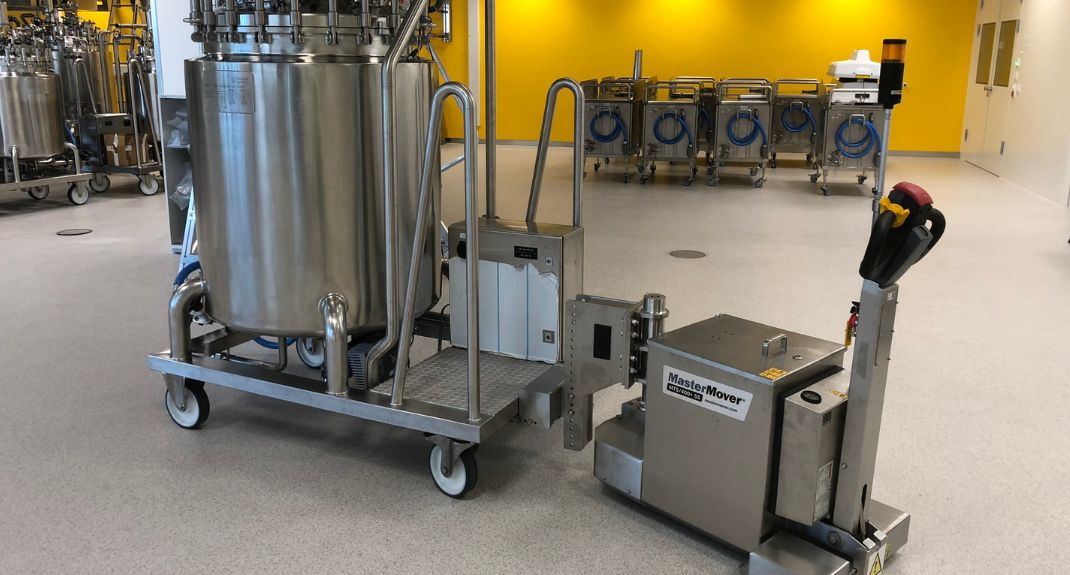

What is an electric tug?

An electric tug is a battery-powered machine designed to move heavy-wheeled loads. They are known by many names such as ‘electric tows’, ‘electric tow tugs’, ‘pedestrian tugs’ and ‘powered tugs’.

As a type of material handling equipment (MHE), electric tugs are used extensively within industrial manufacturing environments and in sectors such as retail, biopharmaceuticals, waste handling and more.

Using electric tugs enables businesses to create processes that are more efficient and safer, enabling a single operator to push, pull and stop heavy loads.

With compact designs, electric tugs are the ideal solution for moving large loads in tight spaces - guaranteeing total manoeuvrability.

Increase operational efficiency

Reduce manual handling

No operator license required

Zero emissions

Improve workplace safety

Maximise flexibility

Traditional handling equipment – Forklift trucks & electric tow tractors

By keeping loads safely on the ground, electric tugs offer an effective alternative to traditional material handling equipment such as forklift trucks, pallet trucks and overhead cranes.

With a compact machine footprint, many businesses are opting for electric tow tugs as an alternative to an electric tow tractor to deliver the precise movement of loads in tight or congested areas.

Read more about alternatives to forklifts

Maximum Load Weight

The heavier the total load weight, the more power needed from the machine to push, pull and stop it, in a safe and controlled way.

This is often referred to as the ‘towing capacity’ or ‘maximum load capability’.

Rolling Resistance

This is the force needed to start a wheeled load moving and is influenced by factors such as floor condition, castor wheels and slopes.

Slopes can have a significant impact on the right electric tug for an application. A simple rule of thumb, the steeper the slope, the more powerful the electric tug needs to be.

Hydraulic clamp

Available on the SmartMover range, our hydraulic clamp creates an unbreakable connection to the load.

Connect directly to your trolley or with our available adaptors.

CombiCoupling

Delivering a rigid connection to loads using a male and female coupling system, our unique

Combi Coupling facilitates unrivalled weight-moving capability and manoeuvrability

Pin coupling

Enabling quick and easy connection to a wide range of industry-standard drawbars and towing arms, the pin coupling is a convenient solution for connecting to multiple loads.

Box coupling

Perfect for applications where movement is on slopes or rough terrain, the BoxCoupling ensures a strong connection to the load, enabling precise manoeuvrability.

Channel coupling

Facilitating a secure, direct connection to your trolley, the ChannelCoupling can be used on multiple loads without the need for modifications.

Hydraulic options are available for added load security.

Custom coupling

Designed around your needs. Our experienced engineering team are on-hand to create custom coupling solutions that prioritise security, ease-of-use and suitability.

Material types & environmental ratings

The construction material needed for an electric tug or specialist environmental protection such as required ingress protection (IP) or explosion-proofing all impact the specification.

Electric trailer mover

Our Trailer Moving System is designed to move heavy articulated trailers and HGV trailers safely and offers a safer alternative to shunters and lorries.  

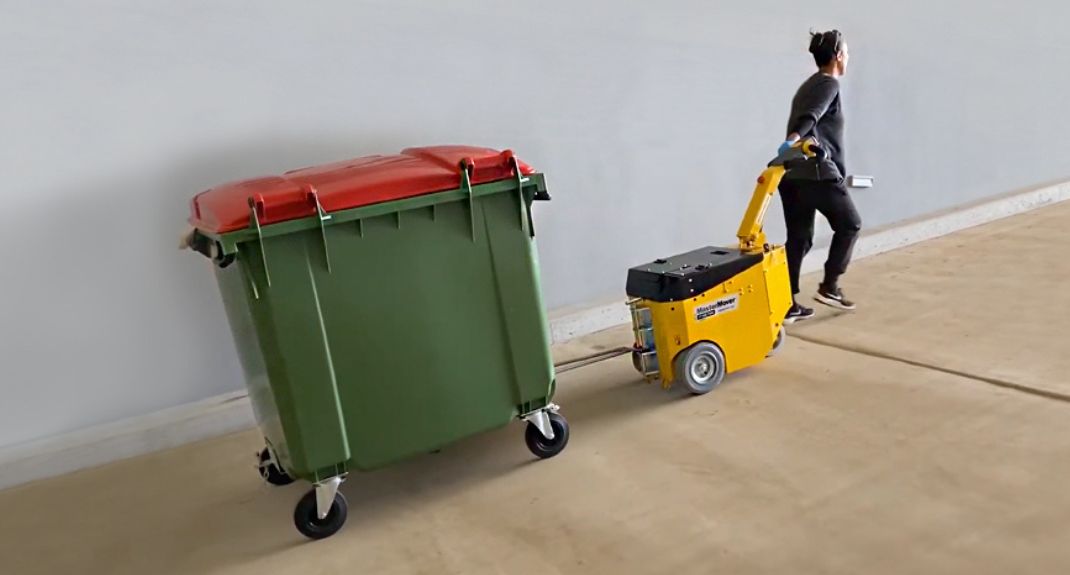

Electric wheelie bin tug

A range of BinMover tugs are available to remove the physical effort in the movement of heavy waste bins in facilities management.

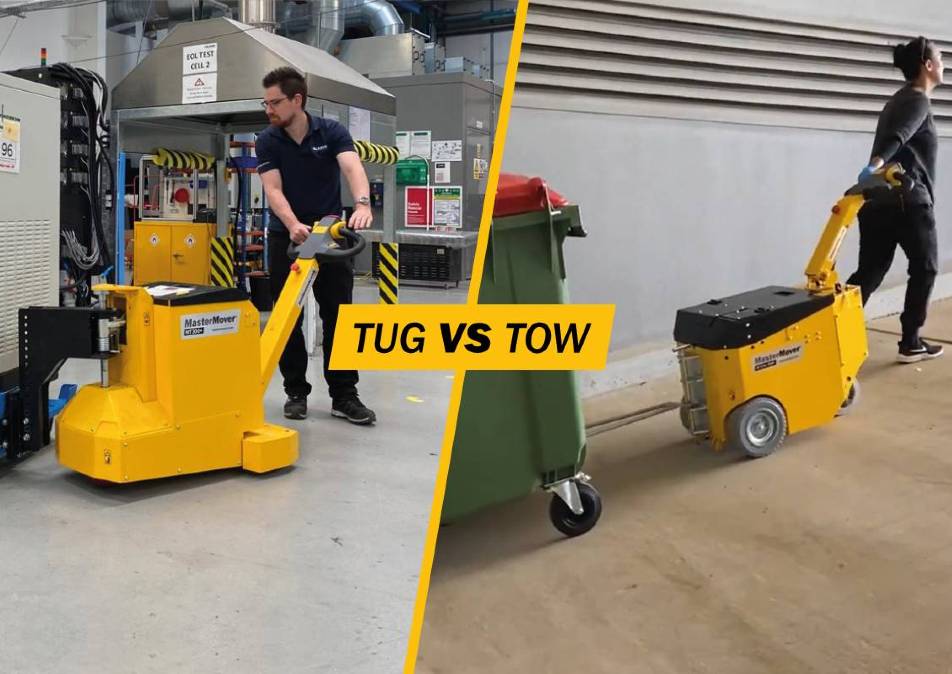

Electric tugs vs electric tow tugs

The phrases electric tug and electric tow tug are often used interchangeably, leading to confusion around what the differences are.

The two terms describe two different machine designs designed for different jobs...

Traction is essential when it comes to moving heavy loads and the key difference between an electric tug and an electric tow tug is how they generate traction and in turn, move loads.

Electric tugs utilise a weight transfer system and a specialist coupling set-up designed to get your load moving, steer it, and bring it to a controlled stop. Weight transfer involves a machine transferring an element of the loads weight down onto the drive wheel of the machine to gain traction, allowing compact machines to move very heavy weights.

Unlike tugs, which utilise a weight transfer system to generate traction, an electric tow ultimately uses its own weight to gain traction and get loads moving.

Read more about electric tugs vs tow tugs

Technology & control options

Electric tugs are available with various technology and control options, designed to maximise the benefits of safety and efficiency. From pedestrian operated electric tugs to fully autonomous solutions - there are electric tow tug solutions to meet every requirement.

Remote control operation provides operators with complete flexibility, allowing them to take up the ideal vantage point when making a movement delivering maximum visibility.

Innovative MultiLink technology on our PowerSteered range allows multiple machines (up to 12) to work in synchronisation via one remote control, perfect for the movement of large, awkward loads that require precise positioning.

Take advantage of Line Follow navigation on AGV electric tugs to easily automate the repeated movement of heavy loads to drive operational efficiency. Or benefit from a totally integrated and autonomous solution with a full AGV system that utilises intuitive natural navigation.

Your questions, answered - FAQs

Do I need a license to operate an electric tug?

No, you do not need a licence to use an electric tug. This is one of the many reasons industrial manufacturers are increasingly opting for electric tugs to create fork-fee environments.

Unlike forklift trucks, electric tow tugs don’t lift loads, so they do not fall under LOLER regulations (Lifting Operations ad Lifting Equipment Regulations, 1998).

With an electric tug, you no longer need to wait for the availability of a licensed forklift truck driver to move a load.

How long does the battery last?

Like any battery, the battery life of an electric tug or electric tow is determined by usage, specification, and environmental factors. Battery life can be influenced by variables such as:

Load weight and route
Run speed
Battery specification/size
Environmental conditions such as temperature

We provide a runtime figure on each of our product pages.

Will they work on slopes?

Yes, all MasterMover machines will work on slopes. The maximum angle our tugs are capable of clearing, on average, is 8°.

It is important to remember that for every degree of slope involved, the maximum load capacity of the machine is reduced, just as pushing a car on the level requires less force than on a slope.

Therefore, if the weight of the load is already close to the maximum capacity of the machine a more powerful tug may be needed to move the load on a slope.

Can they work outside?

Yes, all our electric tow tugs are suitable for both indoor and outdoor use. Our AllTerrain tow tug range is the ideal solution for the most challenging of environments.

What if I need a custom solution?

For applications where a standard solution isn’t the right fit, we have a dedicated engineering team on hand to create custom solutions. With 25 years of industry experience in providing customised solutions, you’re in safe hands with MasterMover.

The ultimate guide to electric tugs

Looking to understand electric tugs in a little more detail?

We’ve compiled some helpful resources to get you started, covering everything from how they work, different types of batteries, getting the right connection point and more…
