Stainless Steel Electric Tuggers

Up to 33,000 lbs.

Compact, stainless steel solutions to maximize safety.

Download our brochure

MasterTow TOW300 stainless steel electric tug

The Stainless Steel range of electric tuggers delivers the same level of performance as our mild steel ranges but with the added benefit of seamlessly integrating into sterile environments.  

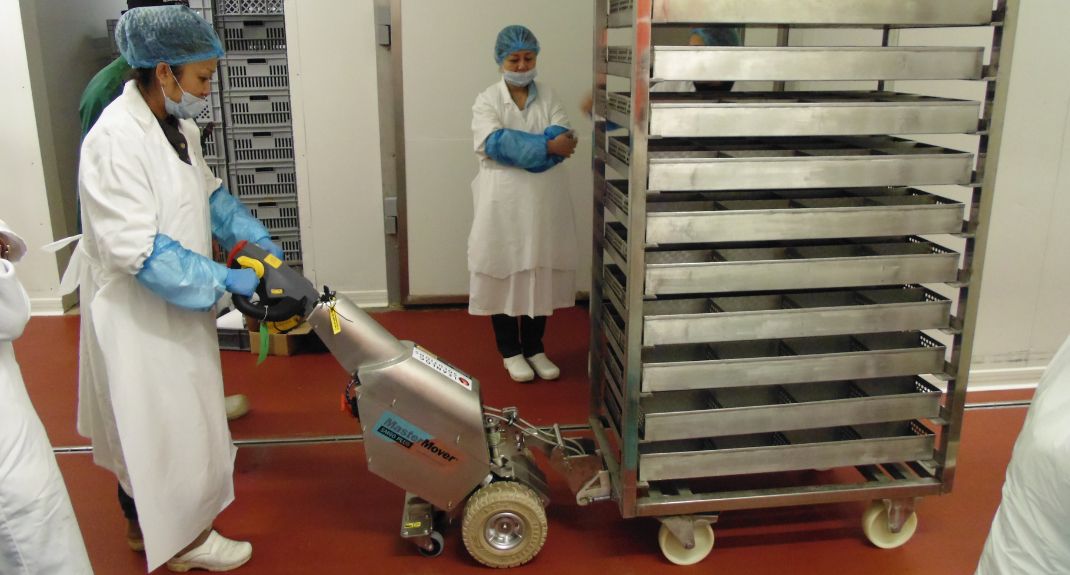

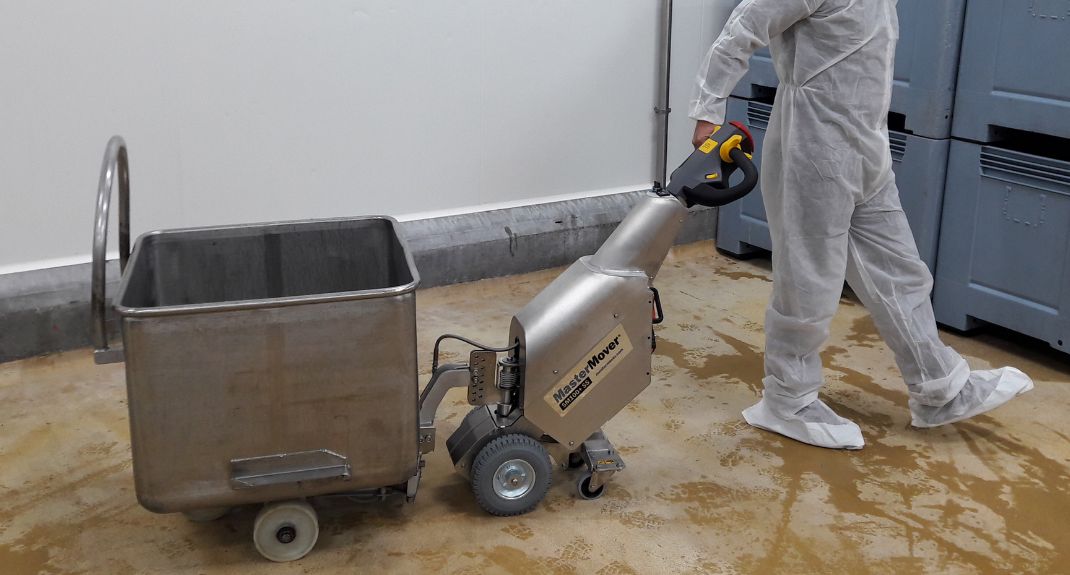

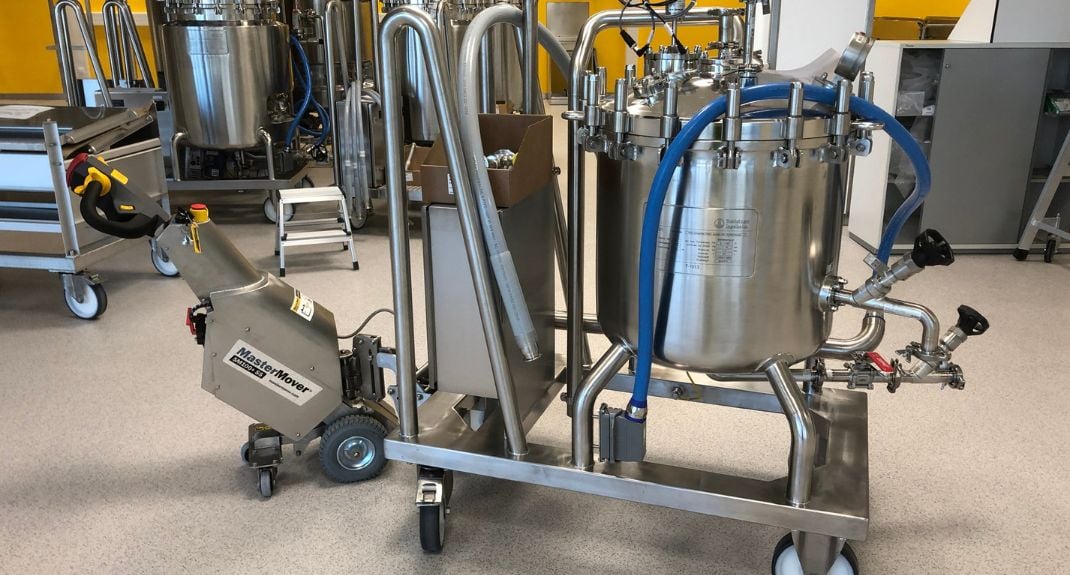

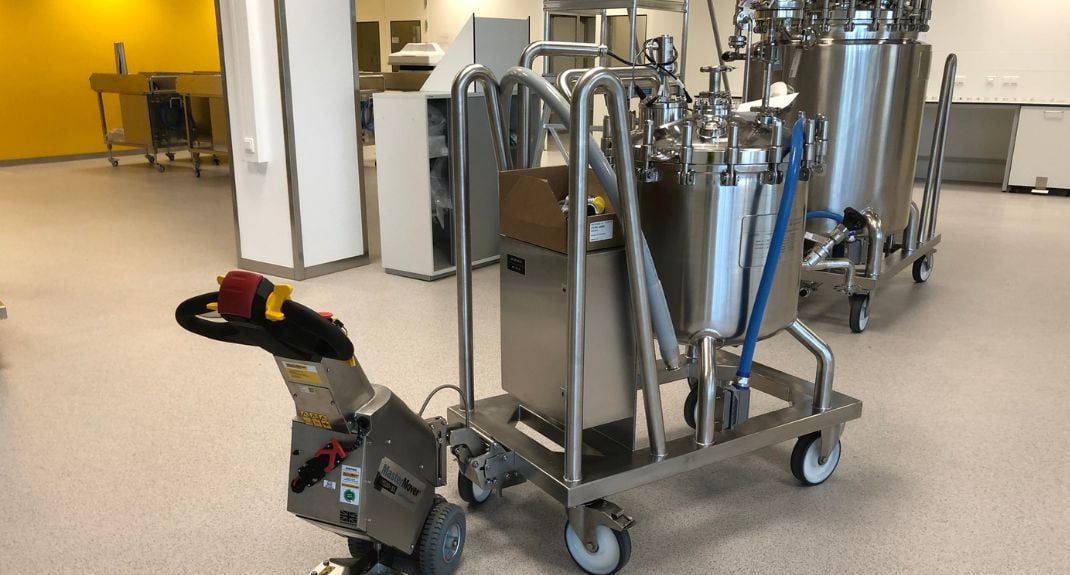

Whether it’s a biopharmaceutical cleanroom suite or a food manufacturing facility, our stainless steel electric tuggers remove manual handling and drive operational efficiency without compromising the cleanliness of your facility. 

Constructed from high-grade 316 stainless steel and with IP ratings of up to IP55 available, stainless steel electric tuggers are ideally suited to the stringent requirements of sterile environments. You're guaranteed powerful performance with machines in the range capable of moving up to 33,000 lbs.

The Stainless Steel range of electric tow tugs facilitates the controlled movement of loads in tight spaces, with an array of coupling options available that put load security and safety at the forefront.  

Safety  

Warning horn, flashing safety light, emergency stop button and anti-crush button 
Speed control with an optional two-speed selector switch for maximum control 
Complete load security with automatic braking

Performance 

Powerful weight-moving capabilities suited to every application
Maximum traction even on wet floors 
Compact and maneuverable to deliver precise movements in even the tightest of spaces

Power  

Optimize motor output to optimize speed and power
Maintenance-free, interchangeable battery options 
Powerful, effective traction generation for smooth performance

Connection 

Secure coupling systems to deliver the controlled movement of loads 
A range of coupling options available to connect to a variety of loads 
Custom couplings available

Explore the Stainless Steel Range

Whether it’s in pharmaceutical manufacturing or food processing, our Stainless Steel Range is relied on to reduce manual handling and safely move heavy loads in sensitive environments.

Filters applied

54 Results

Custom solution available, contact us here.

SM100+ SS

Download technical information

Request a quote

Load capacity 2600 lbs
Maximum slope 30 °
Max distance per charge (standard battery) 4.8 miles
Charge time (external charger) 4.5h
Maximum push force 243 lbs
Maximum pull force 243 lbs
Standard IP rating IP44
Dimensions (w x l x h) 16.2 x 38.3 x 41.3 inch
Interchangeable battery Yes
Lithium battery Yes
Stainless steel Yes
ATEX Yes

SM200+ SS

Download technical information

Request a quote

Load capacity 4400 lbs
Maximum slope 10 °
Max distance per charge (standard battery) 2.6 miles
Charge time (external charger) 5.5h
Maximum push force 353 lbs
Maximum pull force 353 lbs
Standard IP rating IP44
Dimensions (w x l x h) 16.2 x 38.9 x 42.8 inch
Interchangeable battery Yes
Lithium battery Yes
Stainless steel Yes
ATEX Yes

TOW200 SS

Download technical information

Request a quote

Load capacity 4400 lbs
Maximum slope 10 °
Max distance per charge (standard battery) 10.3 miles
Charge time (external charger) 5.5h
Maximum push force 176 lbs
Maximum pull force 265 lbs
Standard IP rating IP55
Dimensions (w x l x h) 19.4 x 37 x 50.1 inch
Interchangeable battery Yes
Lithium battery Yes
Stainless steel Yes
ATEX Yes

TOW300 SS

Download technical information

Request a quote

Load capacity 6600 lbs
Maximum slope 10 °
Max distance per charge (standard battery) 7.3 miles
Charge time (external charger) 5.5h
Maximum push force 265 lbs
Maximum pull force 397 lbs
Standard IP rating IP55
Dimensions (w x l x h) 19.4 x 37 x 50.1 inch
Interchangeable battery Yes
Lithium battery Yes
Stainless steel Yes
ATEX Yes

MT5/400+ SS

Download technical information

Request a quote

Load capacity 8800 lbs
Maximum slope 7 °
Max distance per charge (standard battery) 7.7 miles
Charge time (external charger) 8.25h
Maximum push force 882 lbs
Maximum pull force 882 lbs
Standard IP rating IP44 & IP55
Dimensions (w x l x h) 21.7 x 47.1 x 46.1 inch
Interchangeable battery Yes
Lithium battery Yes
Stainless steel Yes
ATEX Yes

MH400+ SS

Download technical information

Request a quote

Load capacity 8800 lbs
Maximum slope 7 °
Max distance per charge (standard battery) 5.7 miles
Charge time (external charger) 5.5h
Maximum push force 882 lbs
Maximum pull force 882 lbs
Standard IP rating IP44
Dimensions (w x l x h) 26 x 17.7 x 53.2 inch
Interchangeable battery No
Lithium battery No
Stainless steel Yes
ATEX Yes

MT20/800+SS

Download technical information

Request a quote

Load capacity 17600 lbs
Maximum slope 7 °
Max distance per charge (standard battery) 7.3 miles
Charge time (external charger) 6h
Maximum push force 1521 lbs
Maximum pull force 1521 lbs
Standard IP rating IP44
Dimensions (w x l x h) 32.1 x 57 x 44.9 inch
Interchangeable battery Yes
Lithium battery Yes
Stainless steel Yes
ATEX Yes

MT20/960+ SS

Download technical information

Request a quote

Load capacity 22000 lbs
Maximum slope 7 °
Max distance per charge (standard battery) 5.9 miles
Charge time (external charger) 6h
Maximum push force 1764 lbs
Maximum pull force 1764 lbs
Standard IP rating IP44
Dimensions (w x l x h) 32.1 x 57 x 44.9 inch
Interchangeable battery Yes
Lithium battery Yes
Stainless steel Yes
ATEX Yes

MT20/1200+SS

Download technical information

Request a quote

Load capacity 26400 lbs
Maximum slope 7 °
Max distance per charge (standard battery) 5 miles
Charge time (external charger) 6h
Maximum push force 2117 lbs
Maximum pull force 2117 lbs
Standard IP rating IP44
Dimensions (w x l x h) 32.1 x 57 x 44.9 inch
Interchangeable battery Yes
Lithium battery Yes
Stainless steel Yes
ATEX Yes

MT20/1500+SS

Download technical information

Request a quote

Load capacity 33000 lbs
Maximum slope 7 °
Max distance per charge (standard battery) 4 miles
Charge time (external charger) 6h
Maximum push force 2426 lbs
Maximum pull force 2426 lbs
Standard IP rating IP44
Dimensions (w x l x h) 32.1 x 57 x 44.9 inch
Interchangeable battery Yes
Lithium battery Yes
Stainless steel Yes
ATEX Yes

Safety & machine options

The Stainless Steel machines come with a wide range of standard safety features. Additional options are available depending on your application requirements.

Safety
Connection

Safety

Two speed selector switch

Adjustable speed settings at your fingertips.

Stainless Steel flashing light and bleeper

Safety light beeper

Maximize safety when moving loads through congested areas.

Emergency stop

Allows you to immediately stop the machine.

Anti-crush button

Protect operators and maximize operator safety when moving loads.

Warning horn

Perfect for congested areas, alert pedestrians when moving loads.

Connection

Custom couplings

Need something different? We can design custom couplings to suit your application.

They are high-quality, reliable and easy to operate, and furthermore, they offer fantastic control and movement in tight spaces – so they are ideal for use in the biopharma industry.

John O'Reilly

Managing Director, Strikebox Engineering

Loads weighing up to 33,000 lbs.

No certification required

Zero emissions

Compact machines for tight spaces

Secure movement of loads

Suitable for use in cleanroom & food environments

Easy and secure couplings

Unrivalled maneuverability

Your Questions, Answered – FAQs

What grade of stainless steel is used?

All of our stainless steel electric tuggers are constructed with 316 high-grade stainless steel.

This makes them ideally suited to food production environments and biopharmaceutical cleanrooms.

Is a license required?

No, all of our electric tuggers are completely license-free, maximizing productivity and efficiency.

What is the maximum speed?

With the Two Speed Selector switch, the ‘Tortoise’ mode enables you to maximize control and operate the machine at a slower speed setting of .75mph. In the faster ‘Hare’ setting, the machine’s speed is 1.86mph.

Machines can be set with custom speed settings where required, with a maximum programmable speed of 3.72mph.

How far can the range travel on one charge?

Battery performance varies from model to model and is influenced by load weight, battery capacity, environmental conditions and usage.

Individual battery performance data can be found on the Technical Specification Sheets for each model.

How do they connect?

A range of coupling options is available across the range that maximizes performance, security and safety.

Custom coupling solutions can also be designed for unique applications.

What IP ratings are available?

The Stainless Steel range encompasses a number of different machines, with varying ingress protection (IP) ratings.

Individual IP ratings can be found on the Technical Specification Sheets for each model, though as a guide, IP ratings range from IP42 - IP55, with higher ratings available as a custom solution.

Is stainless steel more expensive?

Yes, stainless steel is more expensive than mild steel alternatives due to the addition of a range of other alloying elements. Different grades of stainless steel are available which also influence the price and preparation involved.

Our electric tuggers are used in highly controlled environments such as food manufacturing and biopharmaceuticals, so we use high-grade 316 stainless steel.
