MasterTow Tuggers
Up to 44,000 lbs.
Powerful electric cart tuggers to effortlessly move carts up to 44,000 lbs. with total control, with pedestrian operated, remote control and automated options available…
Thank you for submitting your price request.
A member of the team will be in touch shortly.
The MasterTow range of powerful, easy-to-use electric cart tuggers, is ideally suited to towing carts weighing up to 44,000 lbs. The range uses its own weight to deliver consistent traction, enabling the effortless movement of loads both inside, outside and on slopes.
Boasting intuitive operator controls and safety built-in as standard, the MasterTow range provides operators with complete control when moving heavy tugger carts. With a simple and effective coupling system, the MasterTow tow tug range guarantees load security and is perfectly suited to moving individual carts and multiple tugger carts linked together.
Take advantage of innovative technology with Electric Steer (ES), available from the TOW600 ES upwards. With Electric Steer, benefit from instantaneous steering and added performance in adverse conditions.
The MasterTow range is available with Remote Control, for maximum operator visibility, and Autonomous (AGV) solutions for maximum ROI, safety and efficiency.
MasterTow Cart Mover Key Features
You need a high-quality, durable electric cart tugger tug that doesn’t compromise on safety. The MasterTow range of tow tugs is packed full of features that maximize operator safety when moving wheeled carts.
Safety
- Warning horn, flashing light beacon, and emergency stop
- Multiple speed settings for complete control
- Machine crawl coupling assist is available for easy connection to carts
Performance
- Powerful performance delivers high torque even at low speeds
- Optimized weight distribution for guaranteed traction
- Start, move and stop heavy carts on slopes
Power
- High performance, interchangeable batteries for 24/7 operation
- Optional Battery Protection System maximizes battery life
- Lithium batteries available
Connection
- Easy and universal coupling options
- Lockable couplings to keep loads secure
- Variety of coupling options available
Explore the MasterTow Tow Tug Range
With a variety of machines able to move loads weighing up to 44,000 lbs., the MasterTow cart mover range provides effective material handling solutions to drive safety and operational efficiency.
Custom solution available, contact us here.
TOW200
- Load capacity 4400 lbs
- Maximum slope 10 °
- Max distance per charge (standard battery) 10.3 miles
- Charge time (external charger) 5.5h
- Maximum push force 176 lbs
- Maximum pull force 265 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 19.4 x 37 x 50.1 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
TOW300
- Load capacity 6600 lbs
- Maximum slope 10 °
- Max distance per charge (standard battery) 7.3 miles
- Charge time (external charger) 5.5h
- Maximum push force 265 lbs
- Maximum pull force 397 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 19.4 x 37 x 50.1 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
TOW600
- Load capacity 13200 lbs
- Maximum slope 10 °
- Max distance per charge (standard battery) 5.3 miles
- Charge time (external charger) 7.5h
- Maximum push force 529 lbs
- Maximum pull force 794 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 30.4 x 44.9 x 50.1 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel No
- ATEX Yes
TOW600 ES
- Load capacity 13200 lbs
- Maximum slope 10 °
- Max distance per charge (standard battery) 5.3 miles
- Charge time (external charger) 7.5h
- Maximum push force 529 lbs
- Maximum pull force 794 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 30.4 x 44.9 x 50.1 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel No
- ATEX Yes
TOW800 ES
- Load capacity 17600 lbs
- Maximum slope 10 °
- Max distance per charge (standard battery) 4 miles
- Charge time (external charger) 7.5h
- Maximum push force 705 lbs
- Maximum pull force 1058 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 30.4 x 44.9 x 50.1 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel No
- ATEX Yes
TOW1000 ES
- Load capacity 22000 lbs
- Maximum slope 8 °
- Max distance per charge (standard battery) 6.3 miles
- Charge time (external charger) 7.5h
- Maximum push force 882 lbs
- Maximum pull force 1323 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 35.6 x 49.4 x 56.2 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel No
- ATEX Yes
TOW1200 ES
- Load capacity 26400 lbs
- Maximum slope 8 °
- Max distance per charge (standard battery) 5.3 miles
- Charge time (external charger) 7.5h
- Maximum push force 1058 lbs
- Maximum pull force 1587 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 35.6 x 49.4 x 56.2 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel No
- ATEX Yes
TOW1500 ES
- Load capacity 33000 lbs
- Maximum slope 8 °
- Max distance per charge (standard battery) 4.3 miles
- Charge time (external charger) 7.5h
- Maximum push force 1323 lbs
- Maximum pull force 1984 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 43.5 x 54.6 x 58.7 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel No
- ATEX Yes
TOW2000 ES
- Load capacity 44000 lbs
- Maximum slope 8 °
- Max distance per charge (standard battery) 3.7 miles
- Charge time (external charger) 8.5h
- Maximum push force 1764 lbs
- Maximum pull force 2646 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 50 x 62.6 x 60.1 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel No
- ATEX Yes
Download technical datasheet
Safety & machine options
With an array of standard features and coupling options available, the MasterTow range of cart tuggers can be used to move single loads or multiple tugger carts linked together in a train or mother-daughter cart system.
Two speed selector switch
Adjustable speed settings at your fingertips.
Safety light beeper
Maximize safety when moving loads through congested areas.
Emergency stop
Allows you to immediately stop the machine.
Anti-crush button
Protect operators and maximise operator safety when moving loads.
Warning horn
Perfect for congested areas, alert pedestrians when moving loads.
Automatic cut-off
Preventing accidental operation of the machine.
Tow pin
Works with a range of drawbars allowing easy and secure connection every time.
Box coupling
A perfect solution – and a secure connection - for use on rough surfaces.
Fifth wheel
Delivers precise movements when pushing alongside box coupling.
Towing arm
Create a secure connection to existing pin systems.
Tow ball
A simple and robust connection to 50mm ball hitch couplings.
Custom couplings
Need something different? We can design custom couplings to suit your application.
High-capacity batteries
Increased capacity batteries for longer performance.
Lithium battery options
Power when you need it, enabling opportunity charging for demanding applications.
Battery protection system
Maximise your battery service life by preventing battery damage.
Internal onboard chargers
Our onboard chargers provide flexible charging when you need it.
External charger
Guarantees fast, optimized charging for fixed locations.
Remote control
Excellent visibility for easy positioning, with simple controls.
Wireless AutoSteer
Follow predetermined routes, with operator in control of movement.
Line follow
Autonomous operation using line follow navigation, for repeated movements.

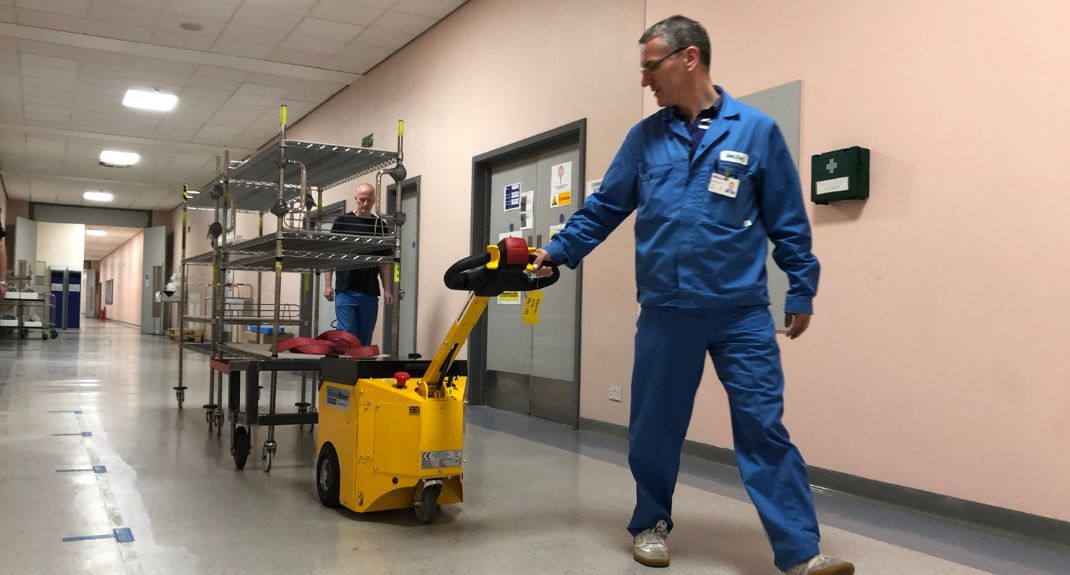

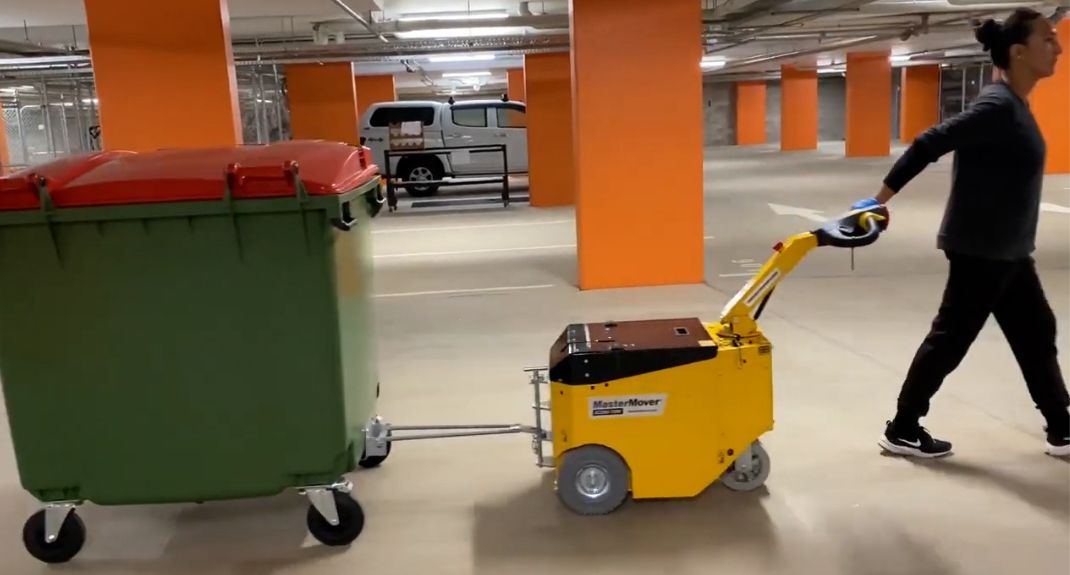

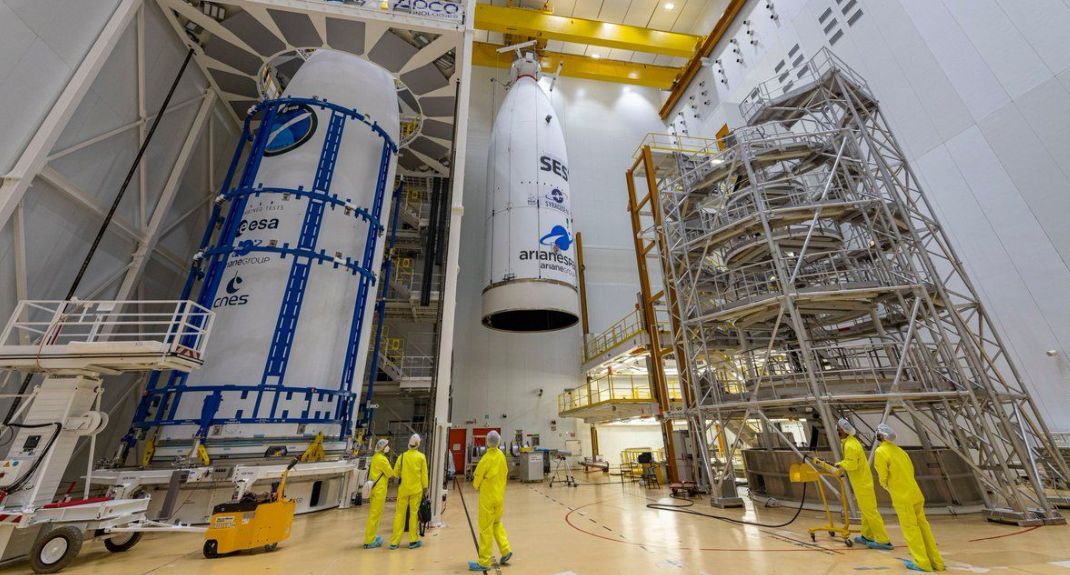

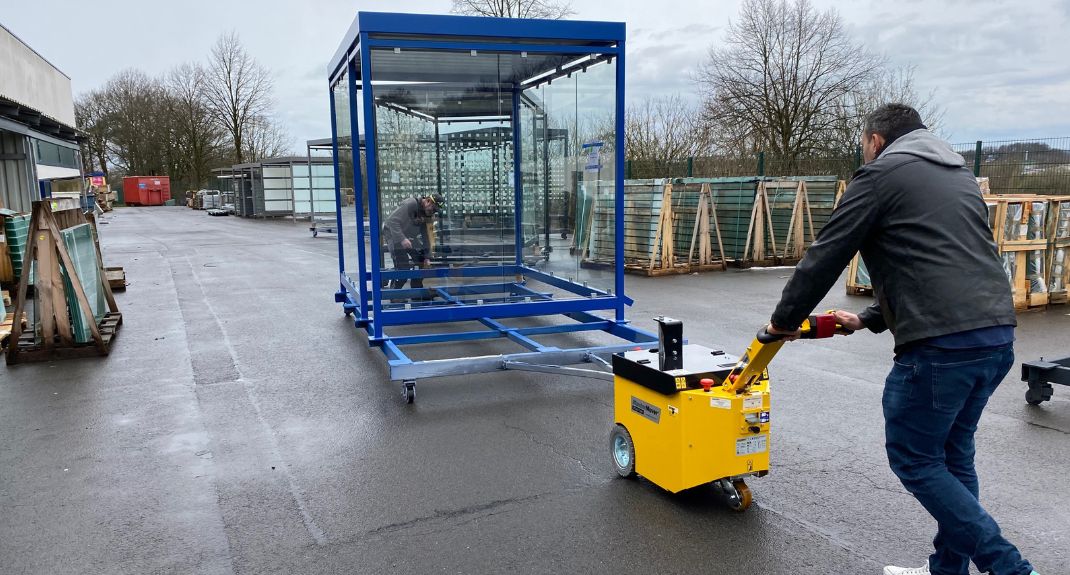

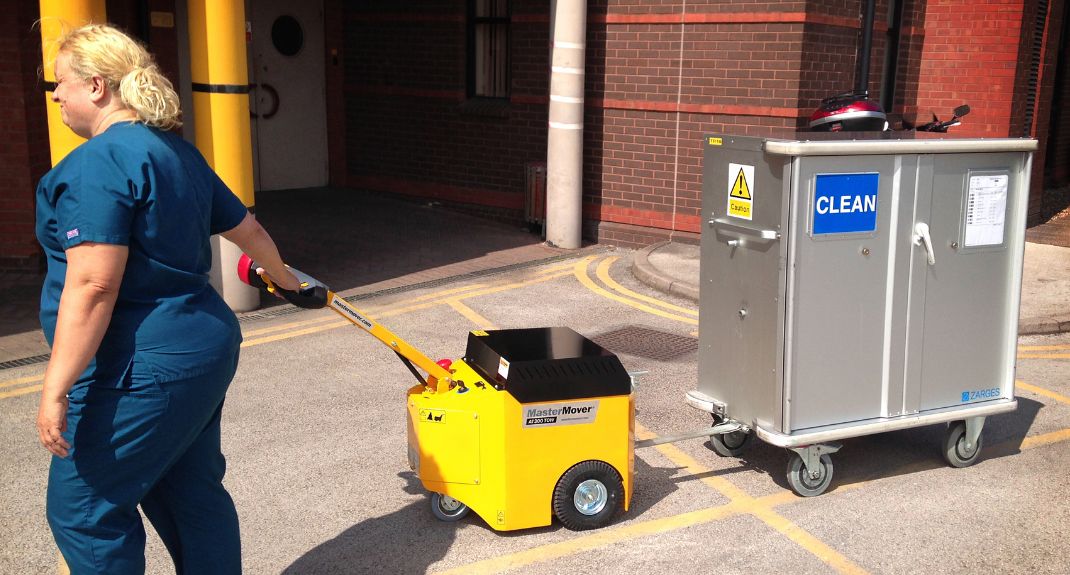

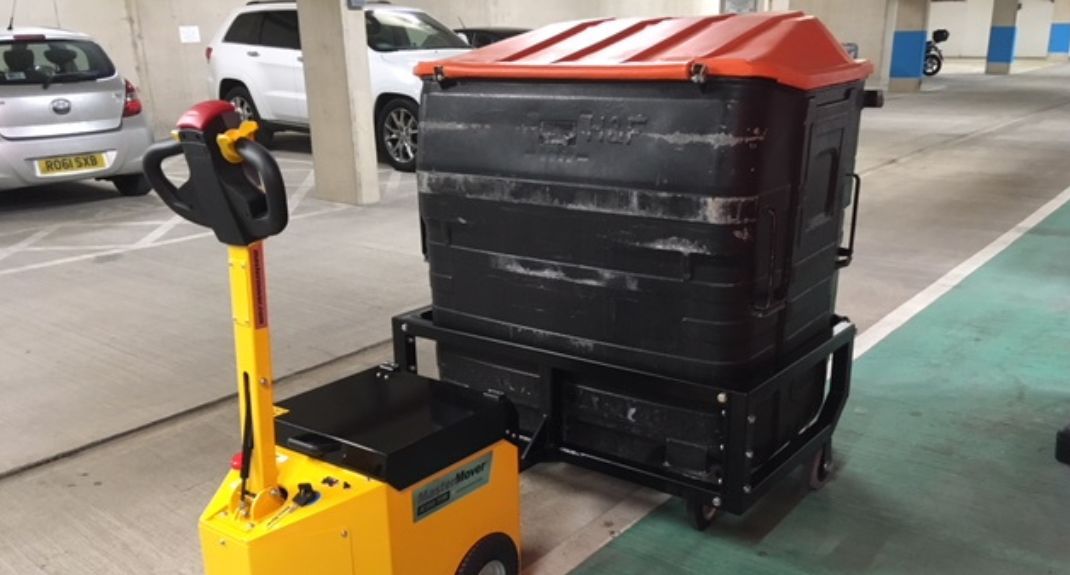

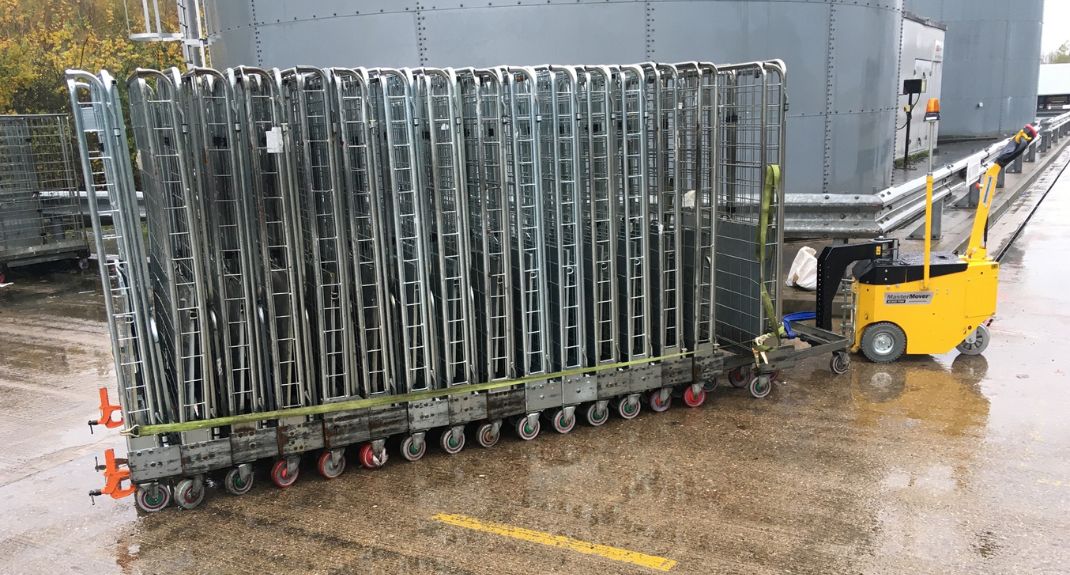

Our MasterTow Tuggers In Action
Use of a MasterMover electric tow tug has enabled us to use a bit of the mill layout for vastly improved production ability and better, faster customer service – space that was previously set aside for forklift movement.
Peter OpenshawProduction Manager, Covers Timber & Builders Merchants
Benefits of MasterTow Tow Tugs
When you need a reliable and flexible solution to move heavy loads, the MasterTow range of electric cart tugger delivers every time.
Move carts up to 44,000 lbs.
No certification required
Zero emissions
Compact machines for tight spaces
Interchangeable battery for 24/7 operation
Eliminate manual handling
Suitable for indoor and outdoor use
Easy and secure couplings
Your Questions, Answered – FAQs
Remote Control: Excellent visibility for easy positioning, with control at the fingertips of the operator.
Wireless AutoSteer: Movement using line follow navigation with speed controlled by the operator via remote control.
Line follow: Autonomous operation using line follow navigation with optional barcode scanning for automatic speed adjustment, best-in-class safety systems reduce risk.
Yes, MasterMover electric cart tugger can be used outside. Built with durability in mind, the MasterTow range delivers consistent traction and performance on uneven surfaces and rough floors. Purpose-built for industrial environments, the MasterTow range can be used inside, outside and on slopes.
Yes, the MasterTow range can push and pull. The design of an electric towing machine means that pulling performance is greater than pushing performance, but with solutions capable of moving up to 44,000 lbs., our team can advise you on which model is best for your application.
With the Two Speed Selector switch, ‘Tortoise’ mode enables you to maximise control and operate the machine at a slower speed setting of 1.2kph. In the faster ‘Hare’ setting, the machine’s speed is 3kph. Machines can be set with custom speed settings where required, with a maximum programmable speed of 6kph.
Battery performance varies from model to model and is influenced by load weight, battery capacity, environmental conditions and usage. Individual battery performance data for each model can be found on the Technical Specification Sheets available for download.
A range of coupling options is available across the range that maximizes performance, security and safety. The tow pin coupling offers a plug-and-play solution perfectly suited to connecting to a range of drawbars.
Yes, the MasterTow range can work safely on slopes. When it comes to electric tugger machines, it’s important to understand that for every degree of slope involved, the maximum load capacity of the machine is reduced, just as pushing a car on the level requires less force than on a slope.
Therefore, if the weight of the load is already close to the maximum capacity of the machine, a more powerful machine may be needed to move the load on a slope. We carry out a full evaluation of your application to ensure any machine is suited to your needs.
