PowerSteered
Up to 70,000kg
Powerful performance for maximum control and safety with advanced control options.
The PowerSteered range allows a single operator to move loads with fingertip control for effortless movement. Benefit from intuitive power steering to make light work of moving the heaviest loads to drive safer, more efficient operations.
The range is available with unparalleled control options, offering a solution for every heavy load-moving challenge. Choose from pedestrian-operated, remote control and even fully autonomous AGV options for maximum efficiency.
The robust design of the PowerSteered range guarantees unrivalled weight-moving performance. A secure coupling system ensures a rigid connection to the load, and a compact machine footprint delivers excellent manoeuvrability.
Our PowerSteered electric tugs can be equipped with MultiLink technology, allowing multiple tugs to operate in unison under a single operator's control, providing combined weight-moving performance and enhanced steering capabilities.
PowerSteered Key Features
With designs that maximise control, the PowerSteered range of electric tugs delivers maximum manoeuvrability and safety when moving large, heavy loads.
Safety
- A range of control modes deliver maximum operator safety
- Warning horn, flashing beacon, performance monitoring and emergency safety shut-off
- Speed control with two-speed selector switch
Performance
- Highly manoeuvrable for precise movement in tight spaces
- Unrivalled visibility for operators
- Powerful hydraulic system maximises load security and power, holding loads even on slopes
- MultiLink and AGV options enable future scalability
Power
- High performance, maintenance-free interchangeable batteries for 24/7 operation
- Optional Battery Protection System maximises longevity
- Compact design, yet high power output
Connection
- Heavy-duty hydraulic coupling system ensures maximum load security and performance
- Self-levelling hydraulics enable secure movements even on slopes
- Optional smart coupling allows for MultiLink capabilities
Explore the PowerSteered Range
The PowerSteered range maximises operational efficiency and helps businesses reduce reliance on traditional material handling equipment to minimise downtime.
Unlock safe and controlled movement of large loads with flexible solutions for every load moving challenge. Further enhance movements with a remote control system, enabling operators to take up the idea vantage point when moving loads.
Custom solution available, contact us here.
PS800+
- Load capacity 8000 kg
- Maximum slope 8 degrees
- Max distance per charge (standard battery) 13.5 km
- Charge time (external charger) 8.5h
- Maximum push force 560 kg
- Maximum pull force 560 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 835 x 1458 x 1608 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
PS800+ LH
- Load capacity 8000 kg
- Maximum slope 8 degrees
- Max distance per charge (standard battery) 11.7 km
- Charge time (external charger) 8h
- Maximum push force 560 kg
- Maximum pull force 560 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 890 x 1493 x 823 mm
- Interchangeable battery Yes
- Lithium battery No
- Stainless steel No
- ATEX Yes
PS1000+
- Load capacity 10000 kg
- Maximum slope 8 degrees
- Max distance per charge (standard battery) 11.1 km
- Charge time (external charger) 8.5h
- Maximum push force 700 kg
- Maximum pull force 700 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 835 x 1458 x 1608 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
PS1200+
- Load capacity 12000 kg
- Maximum slope 8 degrees
- Max distance per charge (standard battery) 9.4 km
- Charge time (external charger) 8.5h
- Maximum push force 840 kg
- Maximum pull force 840 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 835 x 1458 x 1608 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
PS1500+
- Load capacity 15000 kg
- Maximum slope 8 degrees
- Max distance per charge (standard battery) 7.7 km
- Charge time (external charger) 8.5h
- Maximum push force 1050 kg
- Maximum pull force 1050 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 835 x 1458 x 1608 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
PS2000+
- Load capacity 20000 kg
- Maximum slope 8 degrees
- Max distance per charge (standard battery) 5.9 km
- Charge time (external charger) 8.5h
- Maximum push force 1400 kg
- Maximum pull force 1400 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 835 x 1458 x 1608 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
PS2500+
- Load capacity 25000 kg
- Maximum slope 8 degrees
- Max distance per charge (standard battery) 4.8 km
- Charge time (external charger) 8.5h
- Maximum push force 1750 kg
- Maximum pull force 1750 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 835 x 1458 x 1608 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes

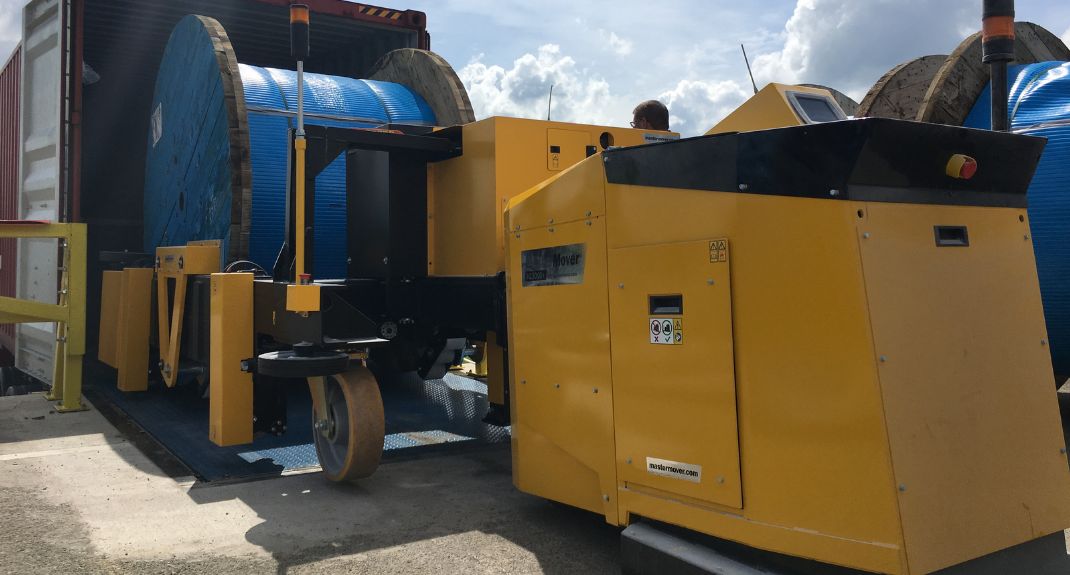

PS3000+
- Load capacity 30000 kg
- Maximum slope 8 degrees
- Max distance per charge (standard battery) 4 km
- Charge time (external charger) 6h
- Maximum push force 1900 kg
- Maximum pull force 1900 kg
- Standard IP rating IP54
- Dimensions (w x l x h) 891 x 1793 x 1407 mm
- Interchangeable battery Yes
- Lithium battery No
- Stainless steel No
- ATEX Yes
PS7000+
- Load capacity 70000 kg
- Maximum slope 8 degrees
- Max distance per charge (standard battery) 5 km
- Charge time (external charger) 8h
- Maximum push force 4500 kg
- Maximum pull force 4450 kg
- Standard IP rating IP64
- Dimensions (w x l x h) 1334 x 2401 x 1625 mm
- Interchangeable battery Yes
- Lithium battery No
- Stainless steel No
- ATEX Yes
Download technical datasheet
Safety & machine options
With a powerful, compact design, the PowerSteered range safely moves loads up to 70,000kg - and beyond with MultiLink technology.
Explore impressive safety features and choose from an array of control options to craft a heavy-duty solution for your needs.
Combi coupling
Secure coupling system that maximises performance and manoeuvrability when pushing and pulling.
Custom couplings
Need something different? We can design custom couplings to suit your application.
Battery protection system
Maximise your battery service life by preventing battery damage.
Internal onboard chargers
Our onboard chargers provide flexible charging when you need it.
External chargers
Guarantees fast, optimised charging for fixed locations.
Battery stand
Make battery changes easy with our battery stand, perfect for storage.
Battery trolley
Easy, hassle-free battery changeovers with the flexibility of a mobile trolley.
Two speed selector switch
Adjustable speed settings at your fingertips.
Safety light beeper
Maximise safety when moving loads through congested areas.
Emergency stop
Allows you to immediately stop the machine.
Warning horn
Perfect for congested areas, alert pedestrians when moving loads.
Additional banksman controller
Enabling a banksman to stop the movement if a hazard is detected
Pedestrian
Available on select machines, benefit from effortless power steering for seamless operation.
Remote control
Excellent visibility for easy positioning, with simple controls.
TillerLink
Combine the power and control of two pedestrian machines to improve manoeuvrability and positioning.
MultiLink
Enables a single operator to control multiple PowerSteered electric tugs with one remote.
Wireless AutoSteer
Combining the power of remote control operation for speed control and line follow for navigation.
Line follow AGV
Fully autonomous operation using line follow navigation, for repeated movements.
AGV
An advanced AGV solution featuring natural feature navigation for fully autonomous movements.
MultiLink Technology Spotlight
Synchronous movements for unrivalled manoeuvrability
Enabling total freedom of movement and combined weight moving capabilities, MultiLink technology enables multiple PowerSteered electric tugs to work in synchronisation, under the control of one operator.
Perfect for the precise movement of long, awkward loads like wind turbine blades or aeroplane wings.
We have not regretted the investment at all. We use the device daily and intensively to improve safety and efficiency in tight spaces.
Jens BeuttenmüllerManaging Director, Beuttenmüller GmbH
Benefits of the PowerSteered Range
The PowerSteered range offers a heavy-weight solution to safely move even the largest of loads...
Safe movement of loads weighing up to 70,000kg and beyond
License-free operation
Zero emissions
Compact machines for tight spaces
MultiLink technology delivers scalability
Multiple control options
Unrivalled operator visibility
Easy and secure couplings
Your Questions, Answered – FAQs
Yes, the PowerSteered range can push, pull and steer heavy loads weighing up to 70,000kg and even up to 360,000kg using MultiLink technology.
With the Two Speed Selector switch, ‘Tortoise’ mode enables you to maximise control and operate the machine at a slower speed setting of 1.2kph. In the faster ‘Hare’ setting, the machine’s speed is 3kph. Machines can be set with custom speed settings where required, with a maximum programmable speed of 6kph.
Operators use a responsive, lightweight remote control to operate the machine. Featuring throttle controls, and an emergency stop and horn, the remote control provides operators with total control when moving loads.
Remote control operation enables operators to take up the ideal vantage point, maximising safety and delivering the safe movement of large loads.
Battery performance varies from model to model and is influenced by load weight, battery capacity, environmental conditions and usage.
Individual battery performance data can be found on the Technical Specification Sheets for each model.
A range of coupling options are available across the range that maximise performance, security and safety.
Custom coupling solutions can also be designed for unique applications.
Yes, the PowerSteered range can work safely on slopes. When it comes to electric tugs, it’s important to understand that for every degree of slope involved, the maximum load capacity of the machine is reduced, just as pushing a car on the level requires less force than on a slope.
Therefore, if the weight of the load is already close to the maximum capacity of the machine, a more powerful machine may be needed to move the load on a slope. We carry out a full evaluation of your application to ensure any machine is suited to your needs.
The PowerSteered range boasts the most comprehensive set of control options yet. Operators can choose from a responsive, lightweight remote control to operate the machine, pedestrian operation (available on some models), synchronised movements (TillerLink & MultiLink), or even fully autonomous AGV solutions.
