Compact
Up to 6,000kg
Small but mighty, our Compact electric tugs enable a single operator to move up to 6,000kg with total control.
Streamline your material handling processes with our Compact electric tugs and tows. Designed to deliver the safe, controlled movement of loads up to 6,000kg, businesses across industrial manufacturing, retail and logistics trust MasterMover electric tugs to improve safety and efficiency.
Eliminating manual handling and reducing the risk of injuries in the movement of loads, our Compact electric tugs empower a single operator to move heavy loads with complete confidence.
Boasting innovative designs, electric tugs and tows enable the seamless movement of loads in the tightest of spaces, delivering maximum manoeuvrability and control.
An effective alternative to traditional material handling equipment, electric tugs do not require a license to operate, driving operational efficiency and productivity.
Compact Range Key Features
Safety
Boasting intuitive safety features including a warning horn, speed control, emergency stop and flashing safety light, the range guarantees operator safety.
Performance
Delivering consistent performance, the range enables a single operator to push, pull and steer loads of up to 6,000kg – inside, outside and on slopes.
Power
The range includes powerful battery options that deliver optimum run times, with lithium and interchangeable options also available.
Connection
A wide range of coupling options are available that maximise load security and simplicity.
Explore the Compact Range
With a variety of machines able to move loads weighing up to 6,000kg, the Compact range provides effective material handling solutions to drive safety and operational efficiency.
Custom solution available, contact us here.
SM100 Tow
- Load capacity 500 kg
- Maximum slope 10 degrees
- Max distance per charge (standard battery) 15.1 km
- Charge time (external charger) 4.5h
- Maximum push force 100 kg
- Maximum pull force 100 kg
- Standard IP rating IP42
- Dimensions (w x l x h) 412 x 944 x 978 mm
- Interchangeable battery Yes
- Lithium battery No
- Stainless steel No
- ATEX Yes
LM100
- Load capacity 1000 kg
- Maximum slope 30 degrees
- Max distance per charge (standard battery) 9.3 km
- Charge time (external charger) 4.5h
- Maximum push force 100 kg
- Maximum pull force 100 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 418 x 983 x 1049 mm
- Interchangeable battery Yes
- Lithium battery No
- Stainless steel No
- ATEX Yes
SM100+
- Load capacity 1200 kg
- Maximum slope 30 degrees
- Max distance per charge (standard battery) 7.7 km
- Charge time (external charger) 4.5h
- Maximum push force 110 kg
- Maximum pull force 110 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 412 x 972 x 1048 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
SM100+ SS
- Load capacity 1200 kg
- Maximum slope 30 degrees
- Max distance per charge (standard battery) 7.7 km
- Charge time (external charger) 4.5h
- Maximum push force 110 kg
- Maximum pull force 110 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 412 x 972 x 1048 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
SM200+
- Load capacity 2000 kg
- Maximum slope 10 degrees
- Max distance per charge (standard battery) 4.2 km
- Charge time (external charger) 5.5h
- Maximum push force 160 kg
- Maximum pull force 160 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 412 x 989 x 1087 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
SM200+ SS
- Load capacity 2000 kg
- Maximum slope 10 degrees
- Max distance per charge (standard battery) 4.2 km
- Charge time (external charger) 5.5h
- Maximum push force 160 kg
- Maximum pull force 160 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 412 x 989 x 1087 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
TOW200
- Load capacity 2000 kg
- Maximum slope 10 degrees
- Max distance per charge (standard battery) 16.6 km
- Charge time (external charger) 5.5h
- Maximum push force 80 kg
- Maximum pull force 120 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 493 x 940 x 1272 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
TOW200 SS
- Load capacity 2000 kg
- Maximum slope 10 degrees
- Max distance per charge (standard battery) 16.6 km
- Charge time (external charger) 5.5h
- Maximum push force 80 kg
- Maximum pull force 120 kg
- Standard IP rating IP55
- Dimensions (w x l x h) 493 x 940 x 1272 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
MT200
- Load capacity 2000 kg
- Maximum slope 8 degrees
- Max distance per charge (standard battery) 10.6 km
- Charge time (external charger) 3.75h
- Maximum push force 140 kg
- Maximum pull force 140 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 570 x 1080 x 1163 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel No
- ATEX Yes
TOW300
- Load capacity 3000 kg
- Maximum slope 10 degrees
- Max distance per charge (standard battery) 11.8 km
- Charge time (external charger) 5.5h
- Maximum push force 120 kg
- Maximum pull force 180 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 493 x 940 x 1272 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
TOW300 SS
- Load capacity 3000 kg
- Maximum slope 10 degrees
- Max distance per charge (standard battery) 11.8 km
- Charge time (external charger) 5.5h
- Maximum push force 120 kg
- Maximum pull force 180 kg
- Standard IP rating IP55
- Dimensions (w x l x h) 493 x 940 x 1272 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
MT300+
- Load capacity 3000 kg
- Maximum slope 8 degrees
- Max distance per charge (standard battery) 11.7 km
- Charge time (external charger) 5h
- Maximum push force 210 kg
- Maximum pull force 210 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 570 x 1393 x 1172 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
MT400+
- Load capacity 4000 kg
- Maximum slope 8 degrees
- Max distance per charge (standard battery) 12.2 km
- Charge time (external charger) 7h
- Maximum push force 280 kg
- Maximum pull force 280 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 570 x 1393 x 1172 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
MT5/400+ SS
- Load capacity 4000 kg
- Maximum slope 7 degrees
- Max distance per charge (standard battery) 12.4 km
- Charge time (external charger) 8.25h
- Maximum push force 400 kg
- Maximum pull force 400 kg
- Standard IP rating IP44 & IP55
- Dimensions (w x l x h) 550 x 1196 x 1171 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
MH400+
- Load capacity 4000 kg
- Maximum slope 7 degrees
- Max distance per charge (standard battery) 9.2 km
- Charge time (external charger) 5.5h
- Maximum push force 400 kg
- Maximum pull force 400 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 660 x 448 x 1355 mm
- Interchangeable battery No
- Lithium battery No
- Stainless steel Yes
- ATEX Yes
MH400+ SS
- Load capacity 4000 kg
- Maximum slope 7 degrees
- Max distance per charge (standard battery) 9.2 km
- Charge time (external charger) 5.5h
- Maximum push force 400 kg
- Maximum pull force 400 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 660 x 448 x 1350 mm
- Interchangeable battery No
- Lithium battery No
- Stainless steel Yes
- ATEX Yes
ATT400+
- Load capacity 5000 kg
- Maximum slope 10 degrees
- Max distance per charge (standard battery) 12.1 km
- Charge time (external charger) 8.25h
- Maximum push force 400 kg
- Maximum pull force 350 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 750 x 1687 x 1165 mm
- Interchangeable battery No
- Lithium battery Yes
- Stainless steel No
- ATEX Yes
MP400
- Load capacity 5000 kg
- Maximum slope 15 degrees
- Max distance per charge (standard battery) 13.4 km
- Charge time (external charger) 7.5h
- Maximum push force 400 kg
- Maximum pull force 0 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 750 x 1632 x 979 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel No
- ATEX Yes

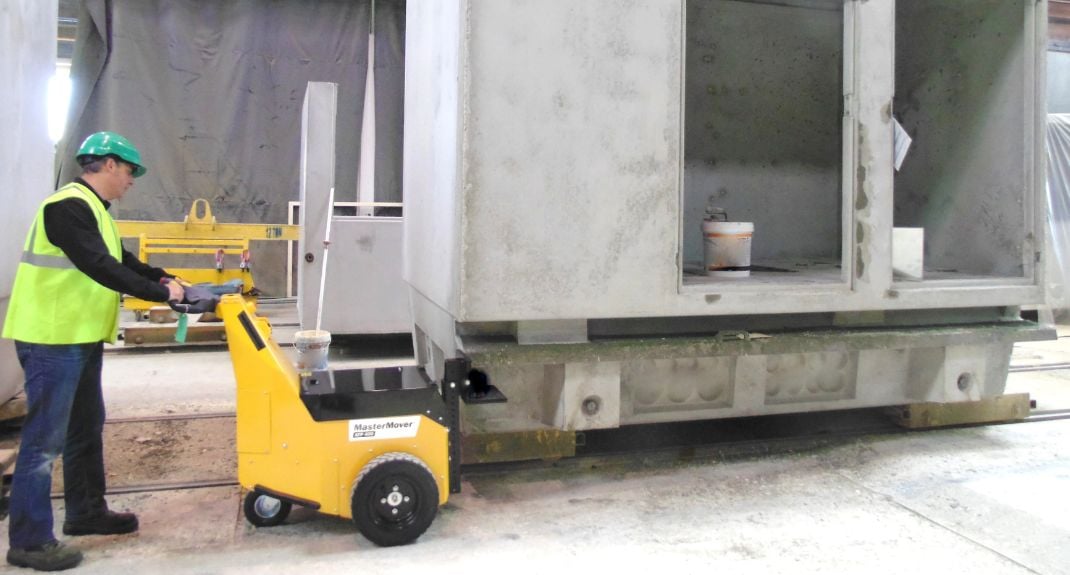

ATP400
- Load capacity 5000 kg
- Maximum slope 10 degrees
- Max distance per charge (standard battery) 12.1 km
- Charge time (external charger) 8.25h
- Maximum push force 400 kg
- Maximum pull force 350 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 750 x 1551 x 1165 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel No
- ATEX Yes
TOW600
- Load capacity 6000 kg
- Maximum slope 10 degrees
- Max distance per charge (standard battery) 8.5 km
- Charge time (external charger) 7.5h
- Maximum push force 240 kg
- Maximum pull force 360 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 773 x 1140 x 1272 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel No
- ATEX Yes
TOW600 ES
- Load capacity 6000 kg
- Maximum slope 10 degrees
- Max distance per charge (standard battery) 8.5 km
- Charge time (external charger) 7.5h
- Maximum push force 240 kg
- Maximum pull force 360 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 773 x 1140 x 1272 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel No
- ATEX Yes
MT600+
- Load capacity 6000 kg
- Maximum slope 8 degrees
- Max distance per charge (standard battery) 8.4 km
- Charge time (external charger) 7h
- Maximum push force 420 kg
- Maximum pull force 420 kg
- Standard IP rating IP44
- Dimensions (w x l x h) 570 x 1393 x 1172 mm
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
Download technical datasheet
Safety & machine options
Take advantage of a number of features across the Compact range
Custom couplings
Need something different? We can design custom couplings to suit your application.
Two speed selector switch
Adjustable speed settings at your fingertips.
Safety light beeper
Maximise safety when moving loads through congested areas.
Emergency stop
Allows you to immediately stop the machine.
Anti-crush button
Protect operators and maximise operator safety when moving loads.
Warning horn
Perfect for congested areas, alert pedestrians when moving loads.
Since using the tugs, we’ve seen a significant reduction in the number of roll cage-related handling injuries to delivery drivers of 42 per cent.
Dave TaylorHealth & Safety Manager, Spar Appleby Westward
We've ordered several SmartMover SM100+ over the last few years and are very happy with their performance. Special thanks to your sales engineers that specified the right product for us and understood our application.
Hanna ZieselDirector TCF, KUKA
Compact, yet powerful machines...
Electric tugs offer flexible and versatile material handling solutions that are ready to work in even the most demanding environments.
Safe movement of loads weighing up to 6,000kg
License-free operation
Zero emissions
Compact machines for tight spaces
Interchangeable battery systems for 24/7 operation
Eliminate manual handling
Suitable for indoor and outdoor use
Easy and secure couplings
Your Questions, Answered – FAQs
No, unlike lifting equipment such as forklift trucks and cranes, an electric tug does not require a license to operate. A license-free operation reduces downtime and maximises operational efficiency, reducing wasted time waiting for a licensed driver.
Minimal training is required to safely operate an electric tug and we offer training packages to suit every requirement.
No, electric tugs do not lift the load. They are designed to keep the load safely on the ground, maximising safety and reducing risk.
Yes, MasterMover electric tow tugs can be used outside. Built with durability in mind, our electric tugs deliver consistent traction and performance on uneven surfaces and rough floors.
Purpose-built for industrial environments, the Compact range can be used inside, outside and on slopes.
Yes, our electric tugs can work safely on slopes. When it comes to electric tugs and tows, it’s important to understand that for every degree of slope involved, the maximum load capacity of the machine is reduced, just as pushing a car on the level requires less force than on a slope.
Therefore, if the weight of the load is already close to the maximum capacity of the machine, a more powerful machine may be needed to move the load on a slope. We carry out a full evaluation of your application to ensure any machine is suited to your needs.
Sectors we work in
Aerospace
Unlock safer material handling processes in the aerospace industry with electric tugs.
Energy & Petrochemical
Maximum performance and manoeuvrability of heavy loads in the energy industry.
Automotive & Heavy Plant
Choose electric tugs to enhance lean processes and increase shop floor flexibility.
Food & Beverage
Eliminate manual handling with electric tugs for safer food material handling – maximising efficiency and reducing the risk of injuries.
Retail, Logistics & Warehousing
The ideal manual handling solution to maximise efficiency and safety within retail and logistics.
Pharmaceutical & Life Sciences
Safely manoeuvre heavy, high-value equipment, eliminating manual handling and maximising production efficiency.
Facilities & Waste
Eliminate manual handling and maximise safety in facilities and waste management.
Manufacturing & Assembly
Industrial manufacturers trust electric tugs to improve workplace safety and supercharge operational efficiency.
Ready to Unlock Safer Operations?
Are you looking to improve safety and efficiency in your operations? Contact us to discover how you could transform your processes to enhance efficiency and maximise workplace safety with an electric tug or electric tow tug.
Related products
SmartMover
Up to 2,000 kg
Compact but powerful, the SmartMover is the ideal manual handling solution – trusted to improve safety across industrial manufacturing, retail and ...
MasterTow
Up to 20,000 kg
Drive safety and efficiency with our powerful electric tow tugs, designed to safely move loads of up to 20,000kg.
MasterTug
Up to 20,000 kg
The MasterTug range allows a single pedestrian operator to easily push, pull and steer wheeled loads weighing up to 20,000kg.
MasterHandler
Up to 4,000 kg
Benefit from maximum manoeuvrability in tight spaces with the MasterHandler, designed to safely move loads with all-swivelling castors.
AllTerrain
Up to 5,000 kg
Delivering powerful performance in demanding conditions, choose the AllTerrain range to safely move heavy loads on rails and castors.
Trailer Moving System
Up to 20,000 kg
The Trailer Moving System is the ideal solution to move unladen trailers weighing up to 20,000kg, in manufacturing and in the yard.
PowerSteered
Up to 70,000 kg
Remote control solutions for maximum visibility when moving loads up to 70,000kg, and beyond with our patented MultiLink solution.
Stainless Steel
Up to 15,000 kg
Constructed from high-grade 316 stainless steel and with IP ratings of up to IP55 available, stainless steel electric tugs are ideally suited to food ...
