PowerSteered
Up to 66,000 lbs.
Powerful performance for maximum control and safety with advanced control options.
The PowerSteered range allows a single operator to move loads with fingertip control for effortless movement. Benefit from intuitive power steering to make light work of moving the heaviest loads to drive safer, more efficient operations.
The range is available with unparalleled control options, offering a solution for every heavy load-moving challenge. Choose from pedestrian-operated, remote control and even fully autonomous AGV options for maximum efficiency.
The robust design of the PowerSteered range guarantees unrivalled weight-moving performance. A secure coupling system ensures a rigid connection to the load, and a compact machine footprint delivers excellent manoeuvrability.
Our PowerSteered electric tugs can be equipped with MultiLink technology, allowing multiple tugs to operate in unison under a single operator's control, providing combined weight-moving performance and enhanced steering capabilities.
PowerSteered Key Features
With designs that maximize control, the PowerSteered range of electric tuggers delivers maximum maneuverability and safety when moving large, heavy loads.
Safety
- A range of control modes deliver maximum operator safety
- Warning horn, flashing beacon, performance monitoring and emergency safety shut-off
- Speed control with two-speed selector switch
Performance
- Highly manoeuvrable for precise movement in tight spaces
- Unrivalled visibility for operators
- Powerful hydraulic system maximises load security and power, holding loads even on slopes
- MultiLink and AGV options enable future scalability
Power
- High performance, maintenance-free interchangeable batteries for 24/7 operation
- Optional Battery Protection System maximises longevity
- Compact design, yet high power output
Connection
- Heavy-duty hydraulic coupling system ensures maximum load security and performance
- Self-levelling hydraulics enable secure movements even on slopes
- Optional smart coupling allows for MultiLink capabilities
Explore the PowerSteered Range
The PowerSteered range maximises operational efficiency and helps businesses reduce reliance on traditional material handling equipment to minimise downtime.
Unlock safe and controlled movement of large loads with flexible solutions for every load moving challenge. Further enhance movements with a remote control system, enabling operators to take up the idea vantage point when moving loads.
Custom solution available, contact us here.
PS800+
- Load capacity 17600 lbs
- Maximum slope 8 °
- Max distance per charge (standard battery) 8.4 miles
- Charge time (external charger) 8.5h
- Maximum push force 1235 lbs
- Maximum pull force 1235 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 32.9 x 57.4 x 63.3 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
PS800+ LH
- Load capacity 17600 lbs
- Maximum slope 8 °
- Max distance per charge (standard battery) 7.3 miles
- Charge time (external charger) 8h
- Maximum push force 1235 lbs
- Maximum pull force 1235 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 35 x 58.8 x 32.4 inch
- Interchangeable battery Yes
- Lithium battery No
- Stainless steel No
- ATEX Yes
PS1000+
- Load capacity 22000 lbs
- Maximum slope 8 °
- Max distance per charge (standard battery) 6.9 miles
- Charge time (external charger) 8.5h
- Maximum push force 1543 lbs
- Maximum pull force 1543 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 32.9 x 57.4 x 63.3 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
PS1200+
- Load capacity 26400 lbs
- Maximum slope 8 °
- Max distance per charge (standard battery) 5.8 miles
- Charge time (external charger) 8.5h
- Maximum push force 1852 lbs
- Maximum pull force 1852 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 32.9 x 57.4 x 63.3 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
PS1500+
- Load capacity 33000 lbs
- Maximum slope 8 °
- Max distance per charge (standard battery) 4.8 miles
- Charge time (external charger) 8.5h
- Maximum push force 2315 lbs
- Maximum pull force 2315 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 32.9 x 57.4 x 63.3 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
PS2000+
- Load capacity 44000 lbs
- Maximum slope 8 °
- Max distance per charge (standard battery) 3.7 miles
- Charge time (external charger) 8.5h
- Maximum push force 3086 lbs
- Maximum pull force 3086 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 32.9 x 57.4 x 63.3 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
PS2500+
- Load capacity 55000 lbs
- Maximum slope 8 °
- Max distance per charge (standard battery) 3 miles
- Charge time (external charger) 8.5h
- Maximum push force 3858 lbs
- Maximum pull force 3858 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 32.9 x 57.4 x 63.3 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes

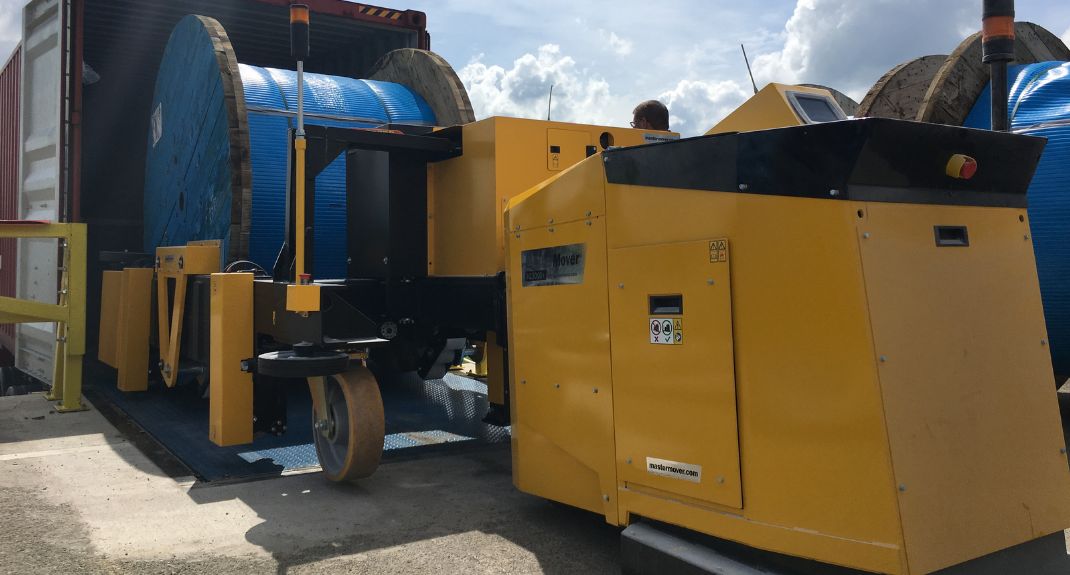

PS3000+
- Load capacity 66100 lbs
- Maximum slope 8 °
- Max distance per charge (standard battery) 2.5 miles
- Charge time (external charger) 6h
- Maximum push force 4188 lbs
- Maximum pull force 4188 lbs
- Standard IP rating IP54
- Dimensions (w x l x h) 35.1 x 70.6 x 55.4 inch
- Interchangeable battery Yes
- Lithium battery No
- Stainless steel No
- ATEX Yes
Download technical datasheet
Safety & Machine Options
With a powerful, compact design, the PowerSteered range safely moves loads up to 70,000kg - and beyond with MultiLink technology.
Explore impressive safety features and choose from an array of control options to craft a heavy-duty solution for your needs.
Two speed selector switch
Adjustable speed settings at your fingertips.
Safety light beeper
Maximize safety when moving loads through congested areas.
Emergency stop
Allows you to immediately stop the machine.
Warning horn
Perfect for congested areas, alert pedestrians when moving loads.
Additional banksman controller
Enabling a banksman to stop the movement if a hazard is detected
Combi coupling
Secure coupling system that maximizes performance and maneuverability when pushing and pulling.
Custom couplings
Need something different? We can design custom couplings to suit your application.
Battery protection system
Maximize your battery service life by preventing battery damage.
Internal onboard chargers
Our onboard chargers provide flexible charging when you need it.
External chargers
Guarantees fast, optimized charging for fixed locations.
Battery stand
Make battery changes easy with our battery stand, perfect for storage.
Battery cart
Easy, hassle-free battery changeovers with the flexibility of a mobile cart.
Pedestrian
Available on select machines, benefit from effortless power steering for seamless operation.
Remote control
Excellent visibility for easy positioning, with simple controls.
TillerLink
Combine the power and control of two pedestrian machines to improve manoeuvrability and positioning.
MultiLink
Enables a single operator to control multiple PowerSteered electric tuggers with one remote.
Wireless AutoSteer
Combining the power of remote control operation for speed control and line follow for navigation.
Line follow AGV
Fully autonomous operation using line follow navigation, for repeated movements.
AGV
An advanced AGV solution featuring natural feature navigation for fully autonomous movements.
MultiLink Technology Spotlight
Synchronous movements for unrivaled maneuverability
Enabling total freedom of movement and combined weight moving capabilities, MultiLink technology enables multiple PowerSteered electric tuggers to work in synchronization, under the control of one operator.
Perfect for the precise movement of long, awkward loads like wind turbine blades or airplane wings.
We have not regretted the investment at all. We use the device daily and intensively to improve safety and efficiency in tight spaces.
Jens BeuttenmüllerManaging Director, Beuttenmüller GmbH
Benefits of the PowerSteered Range
The PowerSteered range offers a heavy-weight solution to safely move even the largest of loads...
Loads weighing up to 66,000 lbs. and beyond
No certification required
Zero emissions
Compact machines for tight spaces
MultiLink technology delivers scalability
Multiple control options
Unrivalled operator visibility
Easy & secure couplings
Your Questions, Answered – FAQs
Yes, the PowerSteered range can push, pull and steer heavy loads weighing up to 66,000 lbs. and even up to 796,000 lbs. using MultiLink technology.
With the Two Speed Selector switch, the ‘Tortoise’ mode enables you to maximize control and operate the machine at a slower speed setting of .75mph. In the faster ‘Hare’ setting, the machine’s speed is 1.86mph. Machines can be set with custom speed settings where required, with a maximum programmable speed of 3.72mph.
Operators use a responsive, lightweight remote control to operate the machine. Featuring throttle controls, and an emergency stop and horn, the remote control provides operators with total control when moving loads.
Remote control operation enables operators to take up the ideal vantage point, maximizing safety and delivering the safe movement of large loads.
Battery performance varies from model to model and is influenced by load weight, battery capacity, environmental conditions and usage.
Individual battery performance data can be found on the Technical Specification Sheets for each model.
A range of coupling options is available across the range that maximizes performance, security and safety.
Custom coupling solutions can also be designed for unique applications.
Yes, the PowerSteered range can work safely on slopes. When it comes to electric tuggers, it’s important to understand that for every degree of slope involved, the maximum load capacity of the machine is reduced, just as pushing a car on the level requires less force than on a slope.
Therefore, if the weight of the load is already close to the maximum capacity of the machine, a more powerful machine may be needed to move the load on a slope. We complete a full evaluation of your application to ensure the best machine is selected for your needs.
The PowerSteered range boasts the most comprehensive set of control options yet. Operators can choose from a responsive, lightweight remote control to operate the machine, pedestrian operation (available on some models), synchronised movements (TillerLink & MultiLink), or even fully autonomous AGV solutions.
Sectors We Work In
Aerospace
Unlock safer material handling processes in the aerospace industry with electric tuggers.
Energy & Petrochemical
Maximum performance and maneuverability of heavy loads in the energy industry.
Automotive & Heavy Plant
Choose electric tuggers to enhance lean processes and increase shop floor flexibility.
Food & Beverage
Eliminate manual handling with electric tuggers for safer food material handling – maximizing efficiency and reducing the risk of injuries.
Retail, Logistics & Warehousing
The ideal manual handling solution to maximize efficiency and safety within retail and logistics.
Pharmaceutical & Life Sciences
Safely maneuver heavy, high-value equipment, eliminating manual handling and maximizing production efficiency.
Facilities & Waste
Eliminate manual handling and maximize safety in facilities and waste management.
Manufacturing & Assembly
Industrial manufacturers trust electric tuggers to improve workplace safety and supercharge operational efficiency.
Ready to Unlock Safer Operations?
Are you looking to improve safety and efficiency in your operations? Contact us to discover how you could transform your processes to enhance efficiency and maximize workplace safety with an electric tugger or electric tow tug.
