Airbus Creates Production Line Using MasterMover Electric Tugs

Airbus, one of the world’s leading aircraft manufacturers, uses MasterMover pedestrian electric tugs as an integral part of its wing assembly plant in Broughton.

The factory, near Chester, manufactures wings for Airbus aircraft. Broughton is a global centre of excellence for manufacturing and delivers over 500 wing sets per year for the A320 family, A330 and A350.

The complex manufacturing and assembly process requires fast, safe and effective transportation of components and tooling around the factory. Wings for the A320 aircraft are made using aluminium but the arrival of the A350 brings with it a move towards carbon fibre composites. With either, the parts are long, awkward to handle and often heavy.

70+ machines in operation

20+ year partnership

500+ wing sets per year

A long-term partnership

Over the past 20 years, MasterMover has supplied models from the MasterTug range to Airbus as a solution for moving everything from stringers (lightweight aluminium struts that secure the wing outer skin to the frame) through to complete wings.

As demands on the Broughton operation have grown, so has the role for the MasterTug (and more recently our PowerSteered range). Today, the tugs are also used to move support equipment including mobile working platforms, production tooling, kitting trolleys, and test equipment.

Using the principle of weight transfer, electric tugs enable a single pedestrian operator to move heavy components with ease. Components can be moved in a safe and controlled manner without the need for forklift trucks or overhead cranes.

This, in turn, means that Airbus is able to organise its assembly layout to suit its specific working practices without having to account for overhead cranes that only operate in one direction or forklift trucks that need wide internal road networks.

MasterMover electric tugs in action

Varying sizes of MasterTug are used at Broughton, from the MT5/400 (Now MT400+) capable of moving 4,000kg loads to the MT1500+, which can move up to 15,000.

These machines are used throughout the production process: moving parts from goods in to the production line; transporting sub-assemblies through the machining process; and handling turnover jigs so that production staff can rotate components freely and safely.

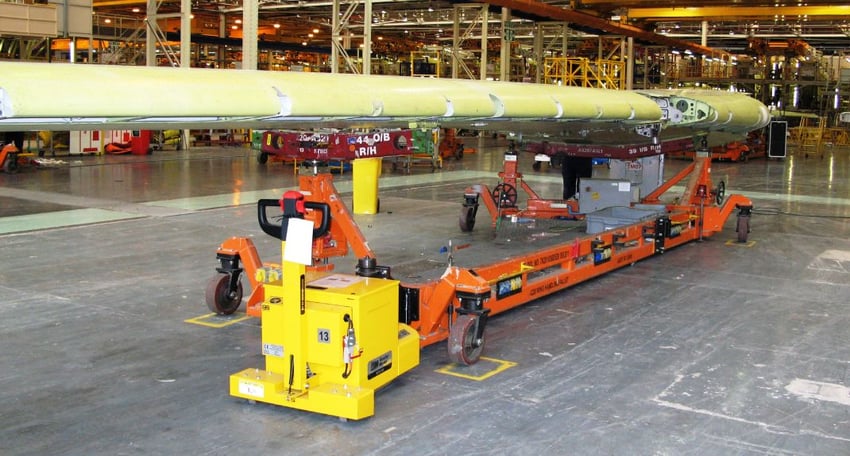

MasterTugs take their place on the flow-line production system used for final assembly of the A320 wings. One is positioned at each assembly stage and together they move the whole production line in unison.

This has proved to be a cost effective and highly reliable means of benefitting from flow line production techniques, which is exactly what Airbus needed with the rapidly growing demand for the smaller single aisle A320 aircraft. With a new wing completed every 11 hours, the MasterTugs have confirmed their reliability and longevity in a demanding production environment.

The expansion of MasterMover’s involvement at Airbus has been a continuous process as Hugh Freer, European Director, explains:

Powerful performance

Since the initial introduction of the MasterTugs, the Broughton plant (which now has over 70 MasterMover machines in use) has also taken advantage of more advanced, innovative solutions.

Most recently, adopting our PowerSteered remote control PS800+ MultiLink solution to move leading and trailing edges. The front of the wing (at the bottom) is called the leading edge; the back of the wing (at the top) is called the trailing edge.

Initially developed by our in-house engineering team specifically for Airbus, the PS800+ delivers effortless movement of loads weighing up to 8,000kg.

With wireless remote control, the operator can make precise movements from a position that maximises safety and load visibility. MultiLink technology enables multiple PS800+ electric tugs to work as a team, allowing a single operator to control multiple machines in synchronisation.

By choosing to partner with the industry expert when it comes to premium electric tug solutions, Airbus has significantly boosted the productivity and safety of it's Broughton production plant.
